Maximum Range
1,720
Maximum Cruise Speed
310
Maximum Passengers
9
Useful Load
3,760
Takeoff Distance
2,111
Beechcraft
King Air 260
The most popular business turboprop in the world just got even better.

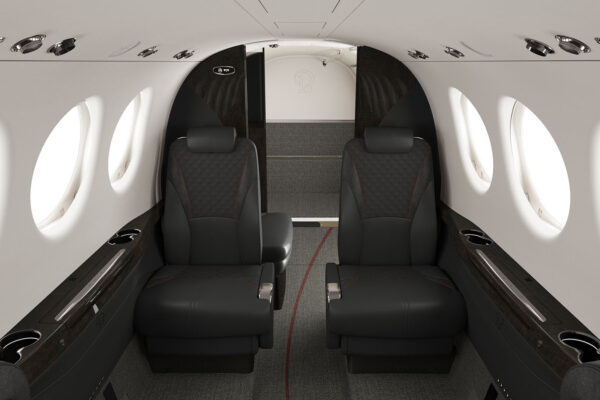

The Beechcraft® King Air® 260 turboprop sports an entirely redesigned cabin, complete with reshaped cabinetry, resculpted sidewalls, new seat design and CoolView® windows.
Contact a sales rep

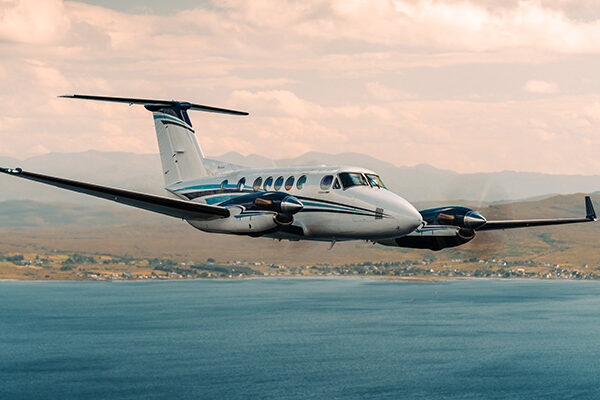

Exterior
The Legendary Look
The King Air® 260 turboprop carries the versatility and reliability that the King Air® family is known for, while delivering people where they need to go in unprecedented comfort. This allows you the flexibility to explore new horizons.
Avionics
Take Control With Advanced Technology
Pro Line Fusion is an intuitive touch-screen flight deck that simplifies how we aviate, navigate and communicate. Featuring standard synthetic vision and enhanced situational awareness, there is no need to search through FMS menus. It’s where the power of simplicity meets cutting-edge performance, durability and reliability.
Take Control With Advanced Technology
The King Air® 260 turboprop standard IS&S ThrustSense® autothrottle system reduces pilot workload through all phases of flight and features protections for engine over-temp and over-torque scenarios.
Now including digital pressurization controlled through the Flight Management System, cabin pressure manual control is a thing of the past.
This latest edition also features standard multi-scan weather radar providing fully automated, optimal scans showing short, mid, and far ranging weather.
The King Air® 260 turboprop features optional SiriusXM® weather adding greater capability to areas outside the continental U.S., including Canada and Puerto Rico.
Standart Features
- IS&S ThrustSense® Autothrottle System
- Digital Pressurization
- Collins Aerospace® Pro Line Fusion® Avionics Suite
- Three 14-Inch Touchscreen Displays
- CoolView® Windows
- Synthetic Vision
- Graphical Flight Planning
- Engine Indicating and Crew Alerting System (EICAS)
- Dual Flight Management System (FMS)
- Multi-scan Weather Radar System (WXR)
- Integrated Terrain Awareness and Warning System (iTAWS)
- Traffic Alert and Collision Avoidance (TCAS I)
- Automatic Flight Guidance System (AFGS)
- Dual Navigation and Communication Radios
Specifications
King Air 260 - Higher Standards
Dimensions
| Length | 43 ft 10 in (13.36 m) |
| Height | 14 ft 10 in (4.52 m) |
| Wingspan | 57 ft 11 in (17.65 m) |
| Wing Area | 310 ft2 (28.8 m2) |
| Tekerlek Açıklığı
(Burun-Ana) |
14 ft 11 in (4.55 m) |
| Wheelbase
(Ana-Ana) |
17 ft 2 in (5.23 m) |
Cabin Interior
| Height | 57 in (1.45 m) |
| Width | 54 in (1.37 m) |
| Length | 16 ft 8 in (5.08 m) |
| Maximum Passengers | 9 |
Baggage Capacity
| Weight | 550 lb (249.5 kg) |
| Volume | 55 ft3 (1.57 m3) |
Weights
| Maximum Ramp Weight | 12,590 lb (5,711 kg) |
| Maximum Takeoff Weight | 12,500 lb (5,670 kg) |
| Maximum Landing Weight | 12,500 lb (5,670 kg) |
| Usable Fuel Weight | 3,645 lb (1,653 kg) |
| Usable Fuel Volume | 544 gal (2,059 l) |
| Basic Operating Weight | 8,830 lb (4,005 kg) |
| Useful Load | 3,760 lb (1,706 kg) |
| Maximum Payload | 2,170 lb (984 kg) |
Performance
| Maximum Cruise Speed | 310 ktas (574 km/h) |
| Maximum Range | 1,720 nm (3,185 km) |
| Takeoff Distance | 2,111 ft (643 m) |
| Ground Roll | 1,715 ft (523 m) |
| Landing Distance | 2,845 ft (867 m) |
| Ground Roll | 1,750 ft (533 m) |
| Maximum Operating Altitude | 35,000 ft (10,668 m) |
| Maximum Climb Rate | 2,437 fpm (743 mpm) |
Powerplant
| Manufacturer | Pratt & Whitney Canada |
| Model | PT6A-52 |
| Power Rating | 850 shp (634 kW) |
| Propeller Manufacturer | Hartzell |
| Description | 4 blade, composite, constant speed, auto feather |
EMAIR Aviation Inc. reserves the right to change about the technical information presented in the introductory pages of the Beechcraft vehicles.
